James, what i receive from the firewall server is 1.3.6.1.4.1.2620.1.1.
specific 0
but the output script from the mib vendor tell me another thing

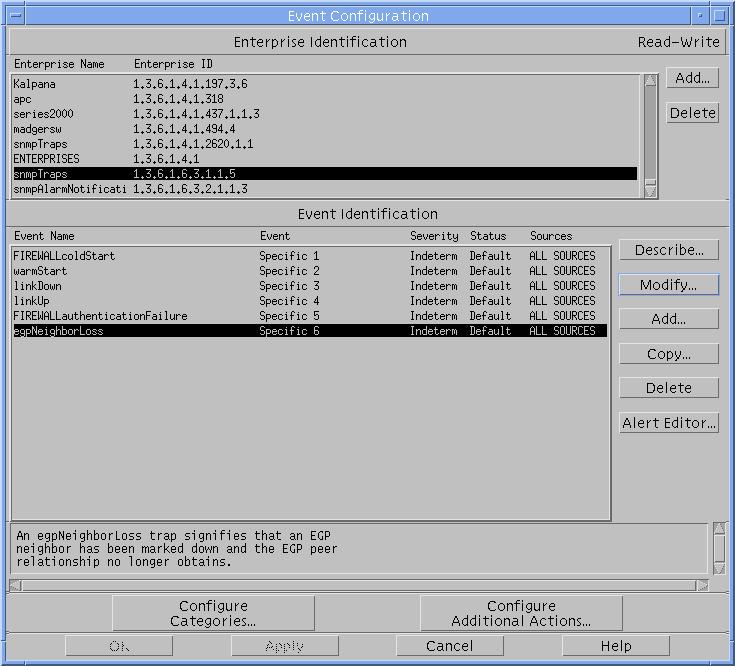

:1.3.6.1.6.3.1.1.5
see file 1 (firewall.trap)
i was thinking that when we add some trap whatever i received from the
firewall server will be format correctly,
but it seem that i must manuelly add trap
i tried to addtrap with this number 1.3.6.1.4.1.2620.1.1...
i'm gonna try to format correctly one, if you have other advice, please let
me know
thank again
Dom
-----Message d'origine-----
De : James Shanks [mailto:jshanks@us.ibm.com]
Envoyé : 4 avril, 2002 11:38
À : D'Apice, Dominic; nv-l@lists.tivoli.com
Objet : Re: [nv-l] snmp trap
Dominic -
I am sorry to say that just because you format a trap using the vendor's
MIB does not mean that the information in it is clear or obvious.
Trapd is formatting the trap according to what he was told in trapd.conf.

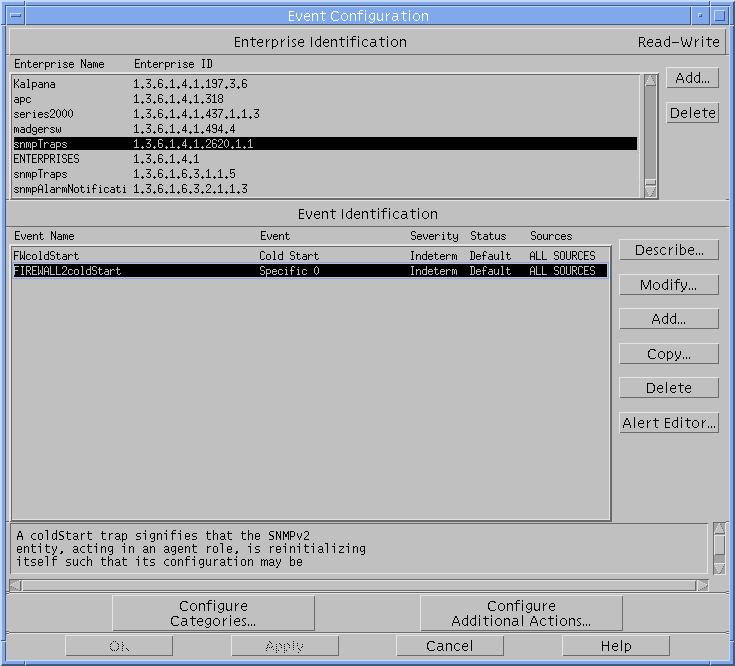

If you use xnmtrap and go find the definition for this trap you will see
that.
What trap is it? It is specific trap 0 from enterprise
1.3.6.1.4.1.2620.1.1. Given the usual ordering of these things, that is
probably coldstart,
but you can verify this with xnmtrap. You can also change the wording of
what is displayed when this trap is received by changing the Log message
for that trap. The man page on trapd,conf will help you understand the
variables, I hope.
James Shanks
Level 3 Support for Tivoli NetView for UNIX and NT
Tivoli Software / IBM Software Group
"D'Apice, Dominic" <D.D'Apice@SAQ.qc.ca>
04/04/2002 10:55 AM
To: nv-l@lists.tivoli.com
cc:
Subject: [nv-l] snmp trap
Hello, aix4.3.3, NV7.1
I just add some new snmp trap for firewall checkpoint.
the output is a scripts with the 6 specific trap
(coldstart,warmstart...).
but when i receive firewall snmp trap i have this king of trap
Can someone tell me what this snmptrap mean ? it is one of the regular
specific trap "0" like "coldstart" ? or is a other one...???
---------------------------------------------
Thu Apr 04 10:20:58 2002 sxpcmc0001.saq. ? Enterprise specific trap (0)
from
ENTERPRISES: args(1):
[1] private.enterprises.2620.1.1.11.0 (OctetString): 4Apr2002 10:20:47
drop SAQ1_EXT >eth-s1p1c0 snmptrap proto udp src MERLOT_COURRIER_INT
dst
172.20.29.60 service netbios-ns s_port netbios-ns len 78 rule 18 xlatesrc
MERLOT_COURRIER_INT xlatedst 172.20.29.60 xlatesport netbios-ns xlatedport
netbios-ns
community:public enterprise:1.3.6.1.4.1.2620.1.1
AgentAddr:sxpcmc0001.saq.qc.ca generic-trap:6 time:0
SPECIFIC : 0 (hex: 0)
GENERIC : 6
CATEGORY : Status Events
ENTERPRISE : ENTERPRISES 1.3.6.1.4.1.2620.1.1
SOURCE : Source not known (?)
HOSTNAME : sxpcmc0001.saq.qc.ca
SEVERITY : Indeterminate
LOGGEDTIME : 04/04/02 10:20:58
-----------------------------------------
thank
> Dominic D'Apice
> * D.D'Apice@saq.qc.ca
>
>
---------------------------------------------------------------------
